Prolyte Mammoth M145RV
![Prolyte M145RV Mammoth Truss](https://www.malecon.de/adb/teaser/85d8ce590ad8981ca2c8286f79f59954/cutout_of_cut_out_asset_83_jpg-197.jpg)

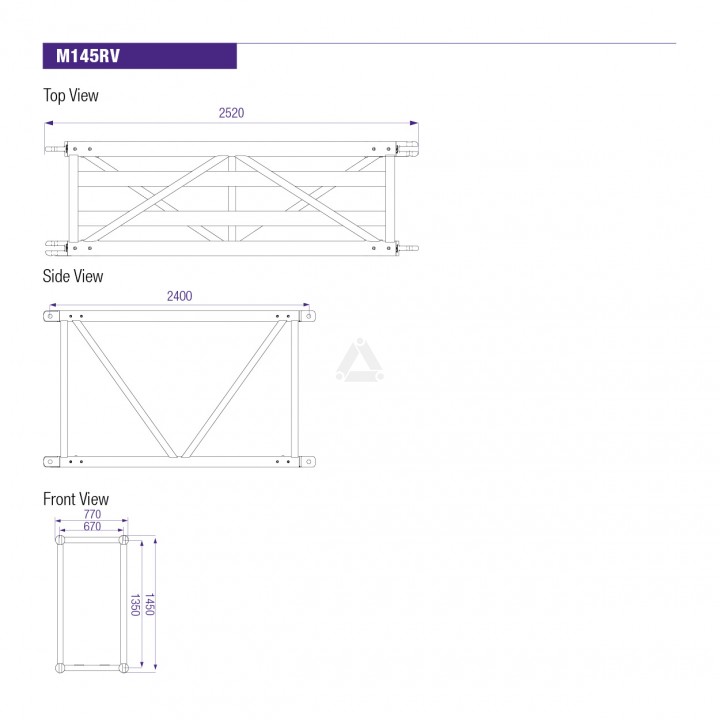

Beschreibung von Prolyte: he M145RV Mammoth truss is constructed of main tubes (100 x 8 mm) and diagonals (60 x 60 x 3,5 mm and 50 x 4 mm). The M145RV truss is equipped with a smart, orientation free, pin-fork type connection and is fast and easy to assemble. The M145RV truss is developed for special applications where extreme loads or circumstances require massive strength; it can be used as mast section in combination with tower systems or as span in combination with the D75 truss. Due to its 4-sided webbing the D75 truss can absorb vertical as well as horizontal loads, which make sit ideal for outdoor or 3 dimensional structures. Spans up to 30 metres are no challenge for this truss. Other truss types can be stored inside the M145RV truss.
